Weatherization is the process of improving a building’s energy efficiency by minimizing energy loss and maintaining indoor air quality. It involves a suite of techniques and tools to seal air leaks, boost insulation, manage moisture, and optimize ventilation—all while respecting the science of how homes “breathe.”

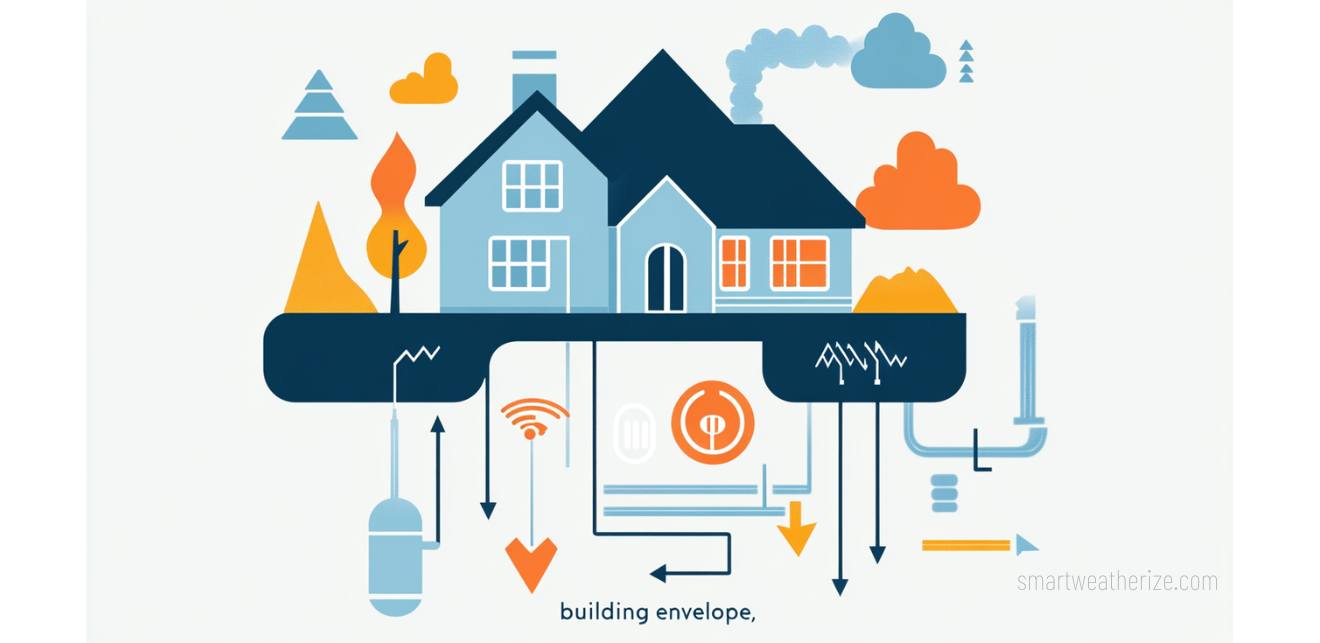

The Building Envelope

The building envelope includes all the elements that separate indoor and outdoor environments—walls, roofs, windows, doors, and floors. Its job is to control the flow of heat, air, and moisture between inside and outside.

But even small gaps or poor insulation can compromise performance through:

• Air leakage, which causes conditioned air to escape and outdoor air to enter
• Thermal bridging, where heat bypasses insulation via framing members or other materials
• Moisture intrusion, which can degrade insulation and damage structures

Sealing and insulating the envelope is the cornerstone of any effective weatherization strategy.

Energy Flow in a Home

To understand how weatherization works, it helps to explore the three ways energy flows through buildings:

• Conduction: Direct transfer of heat through materials (e.g., from warm indoor air through an uninsulated wall)
• Convection: Movement of heat through air currents, often caused by drafts or temperature imbalances
• Radiation: Heat emitted from warm surfaces, like sunlight warming a room through a window

Additional scientific principles at play include:

• Stack effect: Warm air rises and escapes through the attic, drawing in cooler outside air from the lower levels
• Vapor diffusion: Moisture naturally moves from high-humidity areas to low-humidity areas, potentially causing rot or mold if not controlled

Key Components of Weatherization and How They Work

Each weatherization measure targets specific weaknesses in the home’s energy system. Let’s break down how they function on a technical level.

Air Sealing

Air sealing addresses unwanted airflow through cracks, holes, and gaps in the building envelope. These leaks often occur around:

• Windows and doors
• Electrical outlets and plumbing penetrations
• Attic hatches and recessed lighting
• Rim joists and foundation gaps

Tools used:

• Caulk for small cracks
• Spray foam for gaps around pipes and joists
• Weatherstripping for movable joints like windows and doors

Blower door tests measure how much air leaks from your home, typically in CFM (cubic feet per minute), and help pinpoint leakage points.

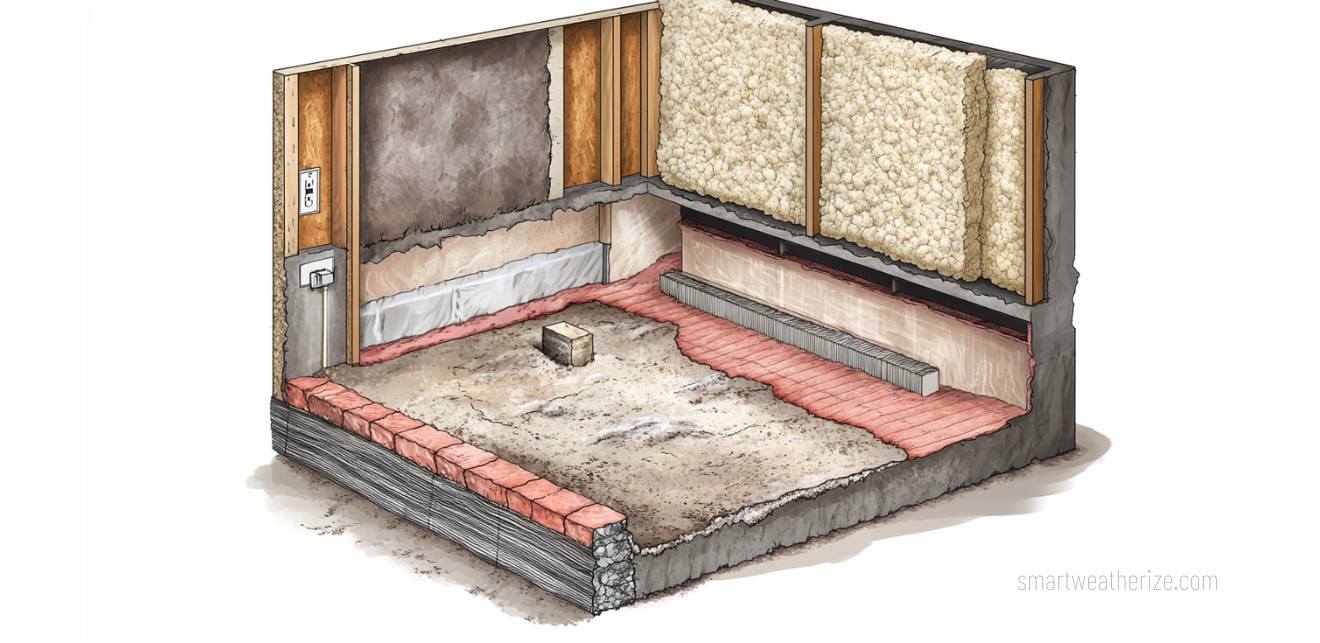

Insulation

Insulation slows heat transfer by conduction, making it easier to maintain a consistent indoor temperature.

Correct placement is essential—especially in the attic, exterior walls, and crawl space—to minimize thermal bridging and prevent conditioned air from escaping.

Ventilation Systems

After air sealing, ventilation becomes essential to ensure indoor air remains healthy and moisture levels are balanced.

• Natural ventilation relies on passive airflow through windows and vents
• Mechanical ventilation includes fans and HRV (Heat Recovery Ventilation) or ERV (Energy Recovery Ventilation) systems that exchange stale air for fresh air efficiently

Without proper ventilation, aggressive air sealing could lead to trapped pollutants and high humidity, causing mold or indoor air quality issues.

Moisture and Vapor Control

Controlling moisture is crucial in weatherization, especially in humid or cold climates. Unchecked moisture leads to mold, rot, and reduced insulation performance.

Key moisture strategies:

• Vapor retarders slow vapor diffusion through walls and ceilings
• Drainage planes (like house wrap or rain screens) direct bulk water away from the structure
• Sealed crawl spaces and dehumidifiers keep relative humidity in check

Proper moisture control is closely tied to insulation and air sealing for long-term building durability.

How Professionals Assess Weatherization Needs

Home Energy Audit Explained

An energy audit includes both qualitative observations and quantitative testing:

Steps involved:

• Visual inspection of envelope and mechanical systems
• Blower door test to detect air leakage
• Infrared thermography to find missing insulation or leaks
• Duct blaster test to check for duct leakage
• Safety checks for combustion appliances

These tools and tests provide a data-driven blueprint for prioritizing improvements.

Prioritizing Upgrades Based on Scientific Metrics

Energy professionals use energy modeling software to simulate your home’s performance under various conditions. This helps:

• Quantify potential energy savings
• Determine return on investment (ROI) for each upgrade
• Customize improvements based on climate zone and existing infrastructure

In colder climates, attic insulation and air sealing may top the list. In hot, humid areas, vapor control and ventilation might be prioritized.

The Science of Savings: What the Data Says

Scientific research and national programs consistently show the economic and environmental value of weatherization:

• The U.S. Department of Energy reports average annual savings of $283 per weatherized household
• The Lawrence Berkeley National Laboratory found that air sealing can reduce leakage by 25–40%, especially in older homes
• ENERGY STAR states that simply upgrading attic insulation can cut heating costs by up to 15%

These savings compound year after year and often pay back the initial investment within 3–6 years.

Expert Quotes

“A home works as a system—when one part is inefficient, it affects the entire structure.”

— Dr. Iain Walker, Building Scientist at Lawrence Berkeley National Laboratory

“Air moves from high to low pressure—understanding this helps us control unintended heat and moisture flow.”

— Allison Bailes, Founder of Energy Vanguard

Case Studies: Weatherization in Action

Example 1: Retrofitting a 1940s Home in Minnesota

Challenges: Cold drafts, ice dams, high heating bills

Solutions:

• Dense-pack cellulose in walls
• Spray foam in rim joists
• Installed HRV for balanced ventilation

Outcome: 38% reduction in heating bills, improved comfort, and better air quality

Example 2: Tightening a Florida Home in a Humid Climate

Challenges: Mold risk, high indoor humidity

Solutions:

• Closed-cell foam in walls
• Vapor barriers under floors
• Mechanical ventilation system added

Outcome: Lower humidity, fewer allergy symptoms, more efficient cooling

Frequently Asked Questions (FAQs)

How does weatherization reduce energy use?
By sealing leaks and insulating thermal boundaries, weatherization minimizes heat loss and gain. This reduces the workload on HVAC systems, leading to lower energy consumption.

What’s the science behind blower door tests?
A blower door test depressurizes the house to detect air leaks. The resulting airflow, measured in CFM (cubic feet per minute), quantifies how much conditioned air is escaping through the building envelope.

Can weatherization make indoor air quality worse?
Yes—if you seal a home too tightly without adding ventilation, pollutants can accumulate. Balanced ventilation systems, like HRVs or ERVs, maintain healthy air exchange.

How do I know what type of insulation I need?
The best insulation depends on your climate zone, existing materials, and home design. Use DOE climate zone maps and R-value guides to choose accordingly.

Conclusion: Weatherization Is Science in Action

Weatherization is far more than a set of home improvement tasks—it’s the application of building science to real-world problems. By understanding how heat, air, and moisture move through your home, you can make smarter, data-backed decisions that boost comfort, efficiency, and health. Whether you’re tackling a DIY project or hiring a pro, knowing how weatherization works puts you in control of your home's energy future.

Next Steps

• Schedule a professional home energy audit to assess air leaks, insulation, and HVAC efficiency.
• Prioritize upgrades with the highest return on investment based on your home’s data.
• Use DOE climate zone guidelines to select appropriate insulation and vapor barriers.
• Check for rebates through local utilities or programs like ENERGY STAR.
• Monitor your savings by comparing utility bills before and after improvements.
